| MB Physical Status |
| Form Factor |
- SSI EEB |
| Dimensions |
- 12'' x 13'' |
| Processor System |
| CPU |
- Intel® Xeon® processor E5-2600 v3/v4 series
*BIOS version 2.0 or above is required for v4 series. |
| Socket |
- Dual Socket LGA 2011 R3* |
| Chipset |
- Intel® C612 |
| System Memory |
| Capacity |
- 16 DIMM slots |
| Type |
- Quad Channel memory technology
- Support DDR4 2400/2133/1866 RDIMM& LR DIMM**Only E5-2600 V4 CPUs support DDR4 2400. |
| DIMM Size Per DIMM |
- RDIMM: 32GB, 16GB, 8GB, 4GB
- LRDIMM: 64GB, 32GB |
| Voltage |
- 1.2V |
| Expansion Slot |
| PCIe 3.0 x 16 |
- 3 slots |
| PCIe 3.0 x 8 |
- 2 slots (PCIE1 switch with PCIE2: x8/x8 ; PCIE3 switch with PCIE4: x8/x8 ) |
| Storage |
| SATA Controller |
- Intel® C612 : 6 x SATA3 6.0Gb/s; 4 x sSATA3 6.0Gb/s; support RAID 0, 1, 5, 10 (SSATA_3 port is shared with M.2 Socket) |
| Additional Storage Controller |
- Marvell 9172: 2 x SATA3 6Gbps, support RAID 0, 1 |
| Ethernet |
| Interface |
- 1000 /100 /10 Mbps by Intel® i210 |
| LAN Controller |
- 4 x RJ45 GLAN by Intel® i210
- 1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSI |
| Management |
| BMC Controller |
- ASPEED AST2400 |
| IPMI Dedicated GLAN |
- 1 x Realtek RTL8211E for dedicated management GLAN |
| Features |
- Watch Dog
- NMI |
| Graphics |
| Controller |
- ASPEED AST2400 |
| VRAM |
- DDR3 16MB |
| Output |
- Supports D-Sub with max. resolution up to 1920x1200 @60Hz |

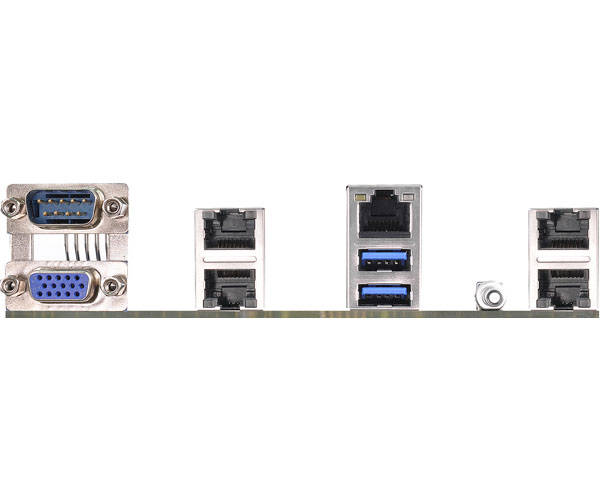

| Rear Panel I/O |
| VGA Port |
- 1 x D-Sub |
| USB 3.1 Gen1 Port |
- 2 |
| Lan Port |
- 4 + 1 (IPMI) Lan port (RJ45)
- LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port |
- 1 (COM1) |
| UID Button/UID LED |
- 1 |
| Internal Connector |
| COM Header |
- 1 (COM2) |
| Auxiliary Panel Header |
- 1 (includes chassis intrusion, location button & LED, front LAN LED and system event LED) |
| TPM Header |
- 1 |
| IPMB Header |
- 1 |
| Buzzer |
- 1 |
| Fan Header |
- 2x CPU Fan, 6x system Fan (4-pin) |
| ATX Power |
- 1 (24-pin) + 2 (8-pin) |
| USB 3.1 (Gen1) Header |
- 1 (support 2 USB 3.0) |
| USB 2.0 Header |
- 1 (support 2 USB 2.0) |
| Type A USB 3.1 (Gen1) Port |
- 1 |
| Front Panel |
- 1 |
| PSU SMB Header |
- 1 |
| System BIOS |
| BIOS Type |
- 128Mb AMI UEFI Legal BIOS |
| BIOS Features |
- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.1 Support
- ASRock Rack Instant Flash |
| Hardware Monitor |
| Temperature |
- Motherboard Temperature Sensing
- CPU1 Temperature Sensing
- CPU2 Temperature Sensing |
| Fan |
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control |
| Voltage |
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB |
| Support OS |
| OS |
Microsoft® Windows®
- Server 2008 R2 SP1 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
- Server 2016 (64 bit)
Linux
- RedHat Enterprise Linux Server 6.5/7.0 (32 / 64 bit)
- CentOS 5.10 / 6.5 (32 / 64 bit) - SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.1 (32 / 64 bit) - Fedora core 19 (64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)
Virtual - VMWare® ESXi 5.5 (not supported for Marvell 9172) |
| Environment |
| Temperature |
- Operation temperature Range: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
