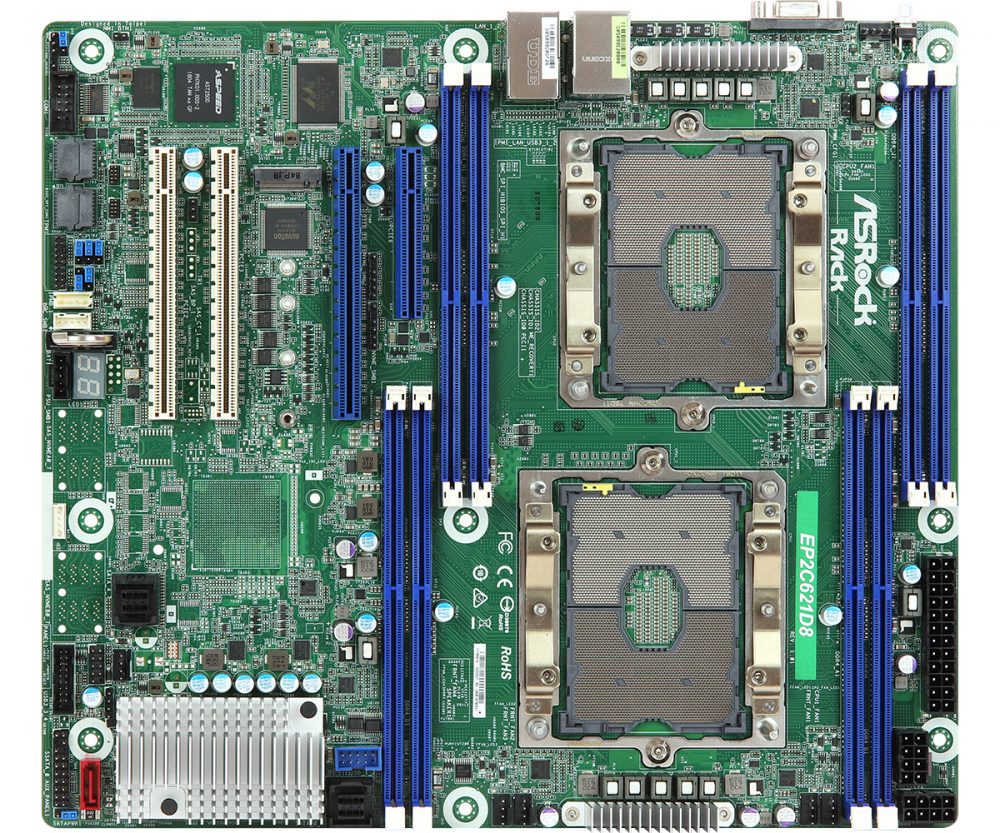

| MB Physical Status |
| Form Factor |
- CEB |
| Dimensions |
- 12" x10.5" |
| Processor System |
| CPU |
- Supports 2nd Gen. Intel® Xeon® Scalable Processors / Intel® Xeon® Scalable Processors |
| Socket |
- Dual Socket P, LGA3647 (Square) |
| Chipset |
- Intel® C621 |
| System Memory |
| Capacity |
- 8 x 288-pin DDR4 DIMM slots |
| Type |
- 4 Channels memory technology
- Supports DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only) |
| DIMM Size Per DIMM |
- RDIMM:32GB, 16GB, 8GB, 4GB
- LRDIMM:64GB, 32GB |
| Voltage |
- 1.2V |
| Expansion Slot |
| PCIe 3.0 x 16 |
- SLOT2: Gen3 x16 link
- SLOT3: Gen3 x16 link
- SLOT5: Gen3 x16 link |
| PCIe 3.0 x 8 |
- SLOT6: Gen3 x8 link |
| Storage |
| SATA Controller |
- Intel® C621: 9 x SATA3 (including 1x SATA DOM port, 8 ports from 2x miniSAS-HD ) +1 x M.2 |
| Ethernet |
| Interface |
- Gigabit LAN 10/100/1000 Mb/s |
| LAN Controller |
- 2 x RJ45 GLAN by Marvell 1543
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 Supports NCSI |
| Management |
| BMC Controller |
- ASPEED AST2500 |
| IPMI Dedicated GLAN |
- 1 x Realtek RTL8211E for dedicated management GLAN |
| Features |
- Watch Dog
- NMI |
| Graphics |
| Controller |
- ASPEED AST2500 |
| VRAM |
- DDR4 16MB |
| Rear Panel I/O |
| VGA Port |
- 1(D-sub) |
| USB 3.1 Gen1 Port |
- 2 |
| Lan Port |
- 2+ 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| UID Button/UID LED |
- 1 |
| Internal Connector |
| SATA DOM |
- 1 |
| M.2 |
- 1 (2230, 2242, 2260, up to 2280) from PCH (support PCIE x4, SATA x1) |
| Auxiliary Panel Header |
- 1(include chassis intrusion, location button & LED, front LAN LED) |
| TPM Header |
- 1 |
| IPMB Header |
- 1 |
| Fan Header |
- 2 x CPU Fan (4-pin), 4x system Fan (4-pin) |
| ATX Power |
- 1x (24-pin) + 2x (8-pin) |
| USB 3.1 (Gen1) Header |
- 1 (support 2 USB 3.0) |
| USB 2.0 Header |
- 1 (support 2 USB 3.0) |
| VROC KEY |
- 1 |
| System BIOS |
| BIOS Type |
- 256Mb AMI UEFI Legal BIOS |
| BIOS Features |
- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8 Support
- ASRock Rack Instant Flash |
| Hardware Monitor |
| Temperature |
- CPU Temperature Sensing
- System Temperature Sensing
- Card Side Temperature Sensing |
| Fan |
- CPU/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Front Fan Multi-Speed Control |
| Voltage |
- Voltage Monitoring: +12V,+5V,+3V,BAT,1.8V_PCH,1.05V_PCH,PVNN_PCH,VCCM_ABC,VCCM_DEF,VCCM_GHI,VCCM_JKL,CPU1_VCORE,CPU2_VCORE,+5VSB,+3VSB |
| Support OS |
| OS |
Microsoft® Windows® (Server OS)
- Server 2012 R2 (64 bit)
- Server 2016 (64 bit)Linux
- Red Hat Enterprise Linux Server 6.8 ( 64 bit) / 7.4 ( 64 bit)
- CentOs 6.8 ( 64 bit) / 7.4 ( 64 bit)
- SUSE Enterprise Linux Server 11 SP4 ( 64 bit) / 12 SP3 ( 64 bit)
- FreeBSD 11.2 ( 64 bit)
- Ubuntu 16.04 (64 bit)
Virtual
- VMWare® ESXi 6.5 u1
- Win hyper-V Server 2016
*Please refer to our website for the latest OS support list.
*Ubuntu 16.04(64bit) Intel® Raid mode only supports UEFI BOOT.
*LSI does not support Vmware ESXi 6.5 u1 / Ubuntu 16.04 (64 Bit) OS install. |
| Environment |
| Temperature |
- Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
