| Form Factor |
4U Rackmount Chassis |
| Server Processor |
Intel Xeon 4th and 5th Gen. Series Processor. |
| M/B Chipset |
Intel C741 chipset Motherboard |
| Momory |
Supports DDR5 Memory Expandable up to 4096GB |
| PCIe Expansion Slot |
6 PCIe5.0 x16 |
| 1 PCIe5.0 x8 |
| Interface |
2 x RJ45 GLAN, 1 Management port |

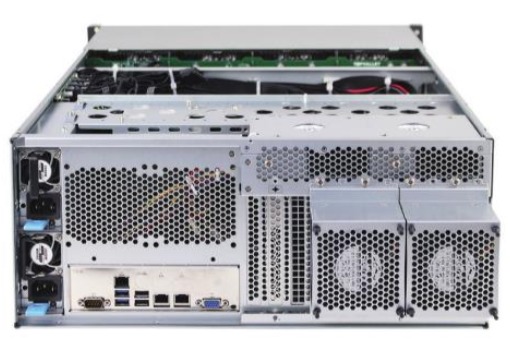

| Rear I/O |
1 x VGA |
| USB 3.0 Port |
2xUSB Port (Front Side) 2 x USB Port (Back Side). |
| Chassis Dimensions (Dx W x H) |
650x437.5x176.5mm |

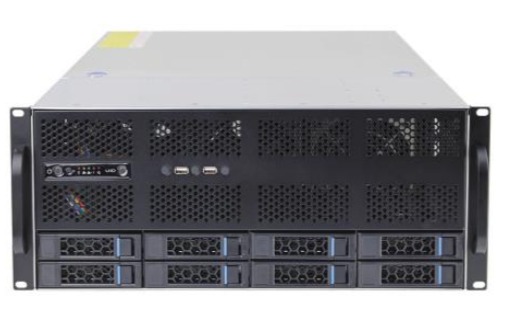

| Front Control |
1x Power On/Off, 1x System Reset, 1 x Unit Identification (UID) button,2 x USB Ports. |
| GPU Support |
4x Double-width GPU upto 450W power consumption per GPU. |
| 6 x Single-width GPU with power consumption from the motherboard. |
| Storage |
Supports 8xSata/SAS or 4xNVMe/4xSata/SAS (Controller required separately |
| Hotswap Backplane |
1)12GB SAS/SATA Hot-swap Backplane |
| 2)4x NVMe Hot-swap Backplane |
|
| Drive Bays |
External 3.5"/ 2.5"：8 |
|
| Cooling Fans |
3 Hot Swap Fan |
| Power Supply |
upto 2x2700Watt CRPS |
| Warranty |
3 years |
Intel Xeon CPU
High Performance
Economical
Environment Friendly
Cost Effective
Capable of running 24x7
Upto 3 Years Warranty
